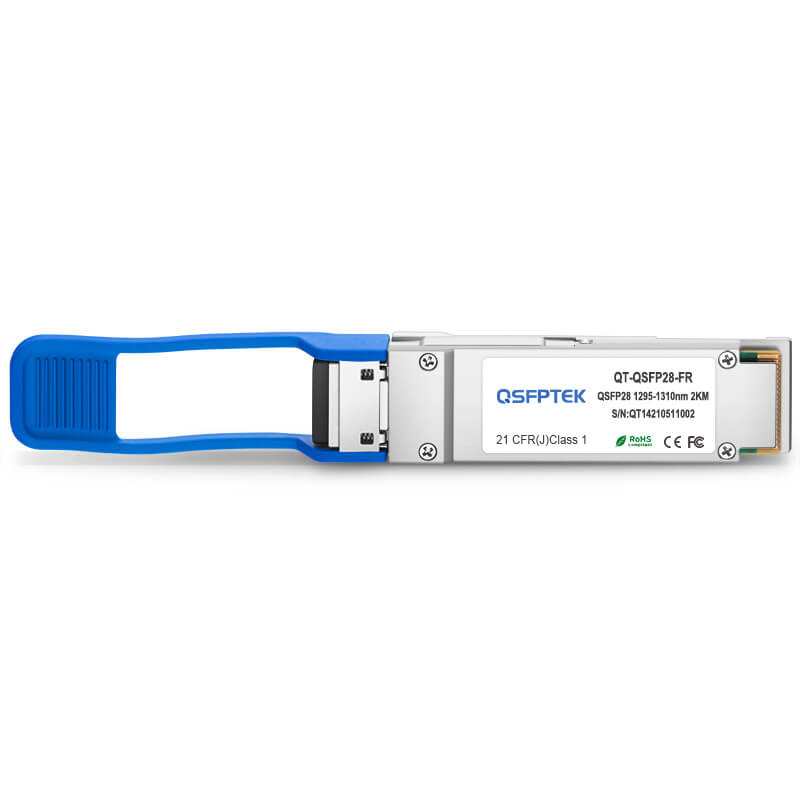

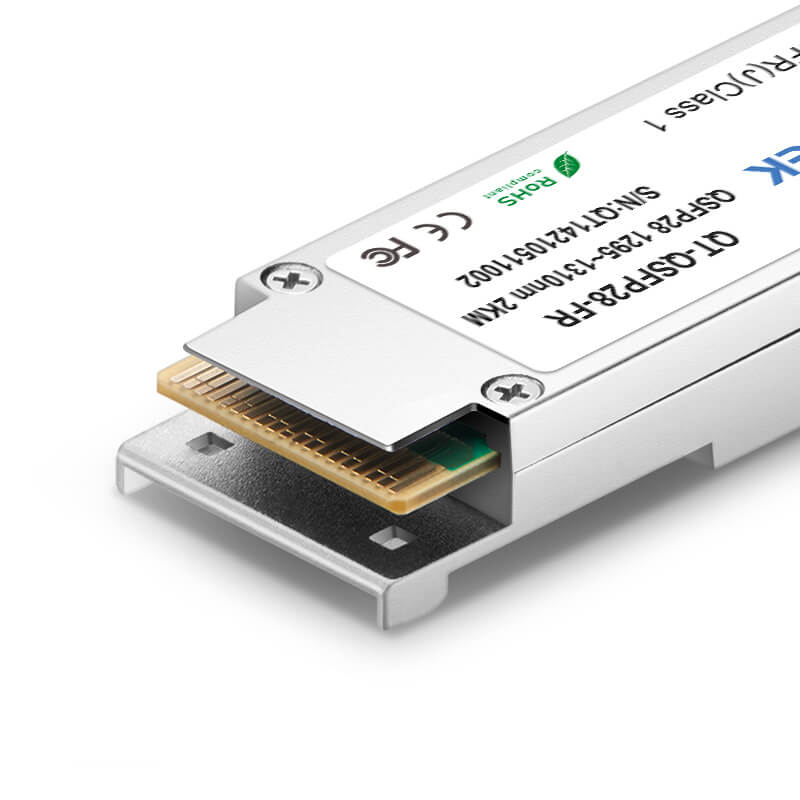

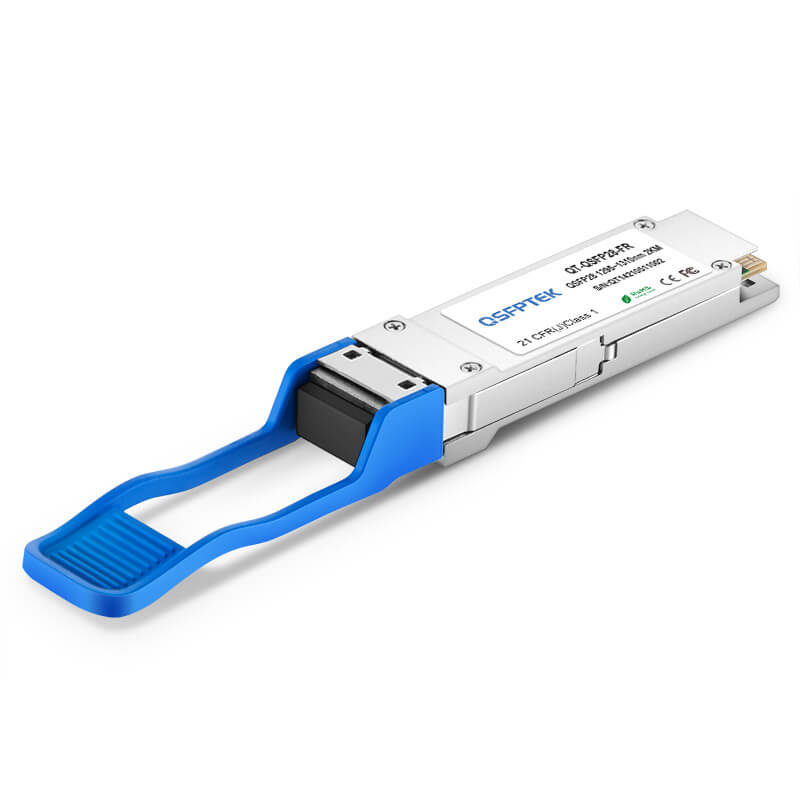

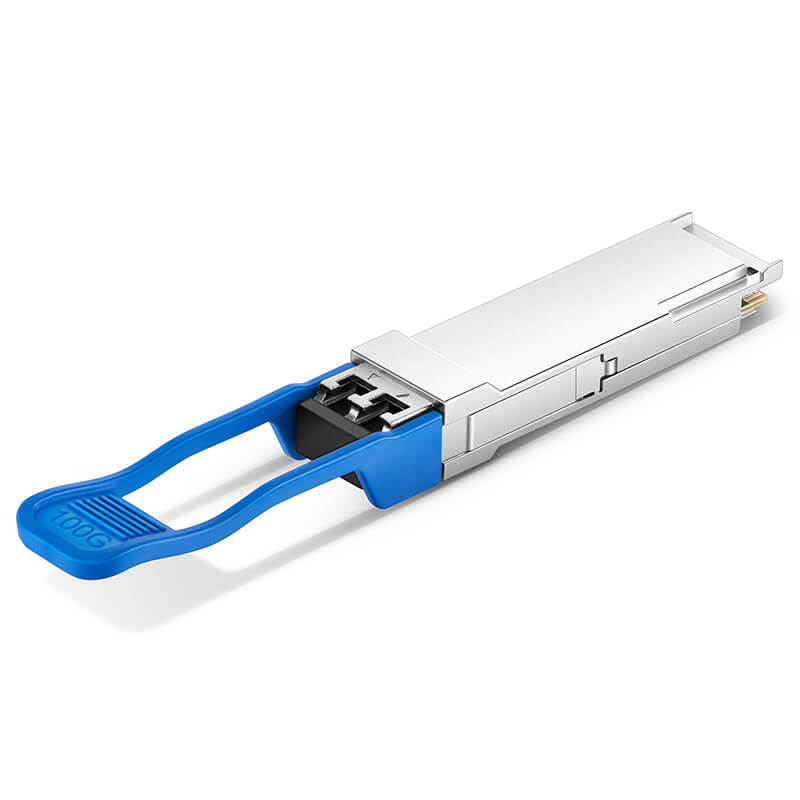

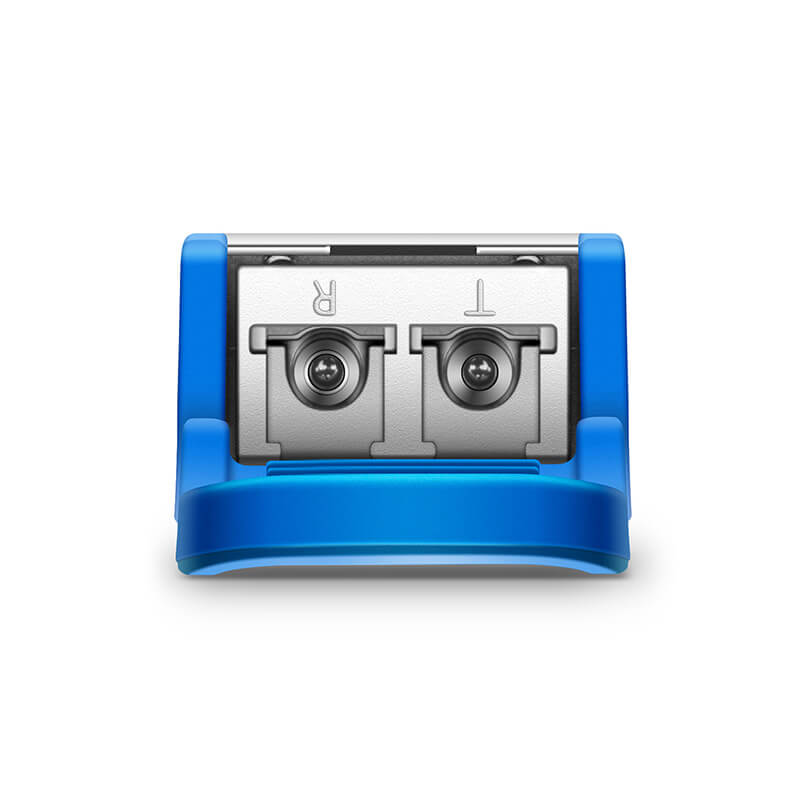

Juniper QSFP-100G-FR Compatible 100GBASE-FR QSFP28 Optical Transceiver Module - Single Lambda QSFP28 1310nm 2km
Item Spotlights:
1. Rate: 100G; Connector: LC; with DDM
2. EML+PIN; Low Power Consumption ≤4.5W
3. Applied in Campus Network, Data Center and Enterprise Core Layer
4. Compatible with 100+ Vendors
5. Hot Pluggable QSFP28 MSA Compliant
Envío gratis
Envío estándar gratuito en pedidos superiores a $99
Estimado para llegar en 4 días hábiles.
Devoluciones gratis
Más información.
Caution
Covid-19 Shipping Delay Notice
Juniper QSFP-100G-FR Compatible 100GBASE-FR QSFP28 Optical Transceiver Module (Single Lambda, 1310nm, 2km, DOM, LC Duplex, SMF)
The Juniper QSFP-100G-FR compatible optical transceiver module is adopted with LC connectors, reaching a link up to 2km over OS2. QSFPTEK manufactured 100GBASE-FR QSFP28 transceiver module is compliant with 100G Lambda MSA 100G-FR Specification, QSFP28 MSA standard. Besides, DDM (digital diagnostics monitoring) function is supported on the 100G fiber optic transceiver to achieve real-time operating parameters monitoring. With these features, this 100G QSFP28 transceiver is widely applied in Data centers, 100G Ethernet and 400G to 100G breakout applications.
Specification
Part Number: | QT-QSFP28-FR | Vendor Name: | QSFPTEK |
Form Factor: | QSFP28 | Data Rate: | 103.125Gbps (4x 25.78Gbps) |
Wavelength: | 1310nm | Distance: | 2km |
Connector: | Duplex LC | Cable Type: | OS2 SMF |
Transmitter: | EML |
Receiver Type: | PIN |
TX Power: | -2.4~4dBm | Receiver Sensitivity: | <-6.4dBm |
Power Consumption: | ≤4.5W | Modulation Format: | PAM4 |
DDM: | Support | Bit Error Ratio (BER): | 5E-5 |
Protocols: I | 100G Lambda MSA, QSFP28 MSA, 100G-FR Specification | Warranty: | 3 Years |
